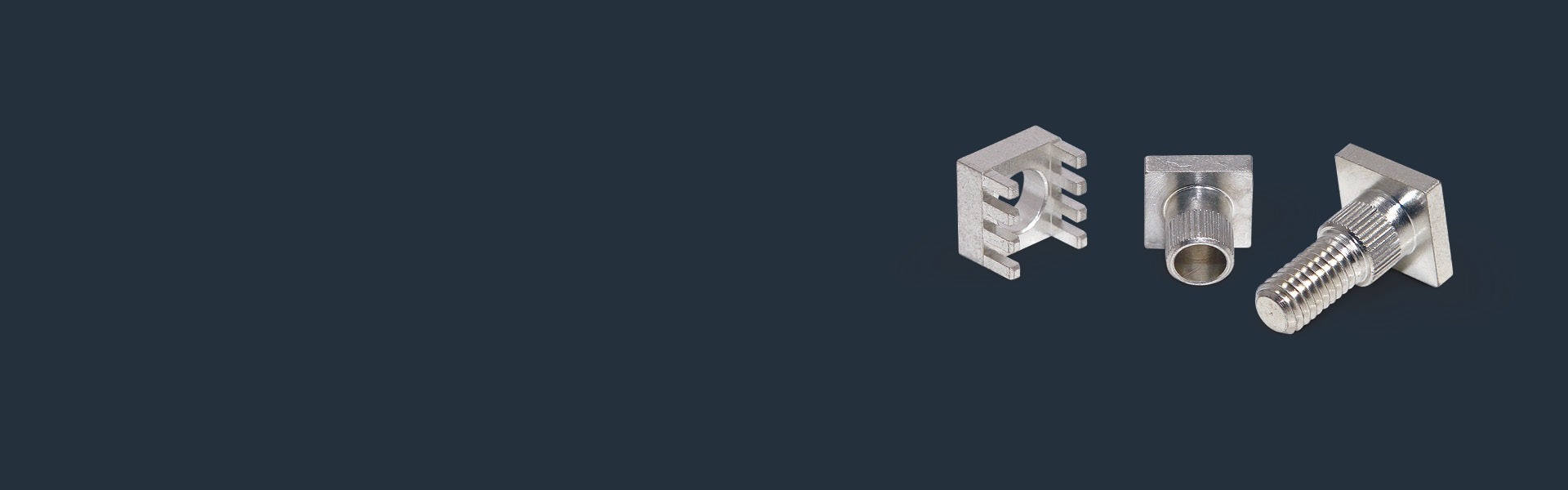

Product collage of PowerTwo Powerelements on dark grey background

(LF) PowerTwo

(LF) PowerTwo

Double keeps better

Ideal for high-strengh through-bolt connections and space-saving applications due to double-sided PCB mounting

(LF) PowerTwo Press-fit Powerelements are REACH and RoHS compliant, consist of two Powerelements and are ideal for mounting through a PCB. They provide a permanent, reliable connection without stressing the PCB.

Depending on the pin configuration and the layout, currents of up to 500 Amps are possible.

Note:The push-in element is not intended for contacting components or for current injection

Product overview PowerTwo (PDF)



A lead-free version (LF PowerTwo) of the PowerTwo Powerelements is also available:

Product overview LF PowerTwo (PDF)

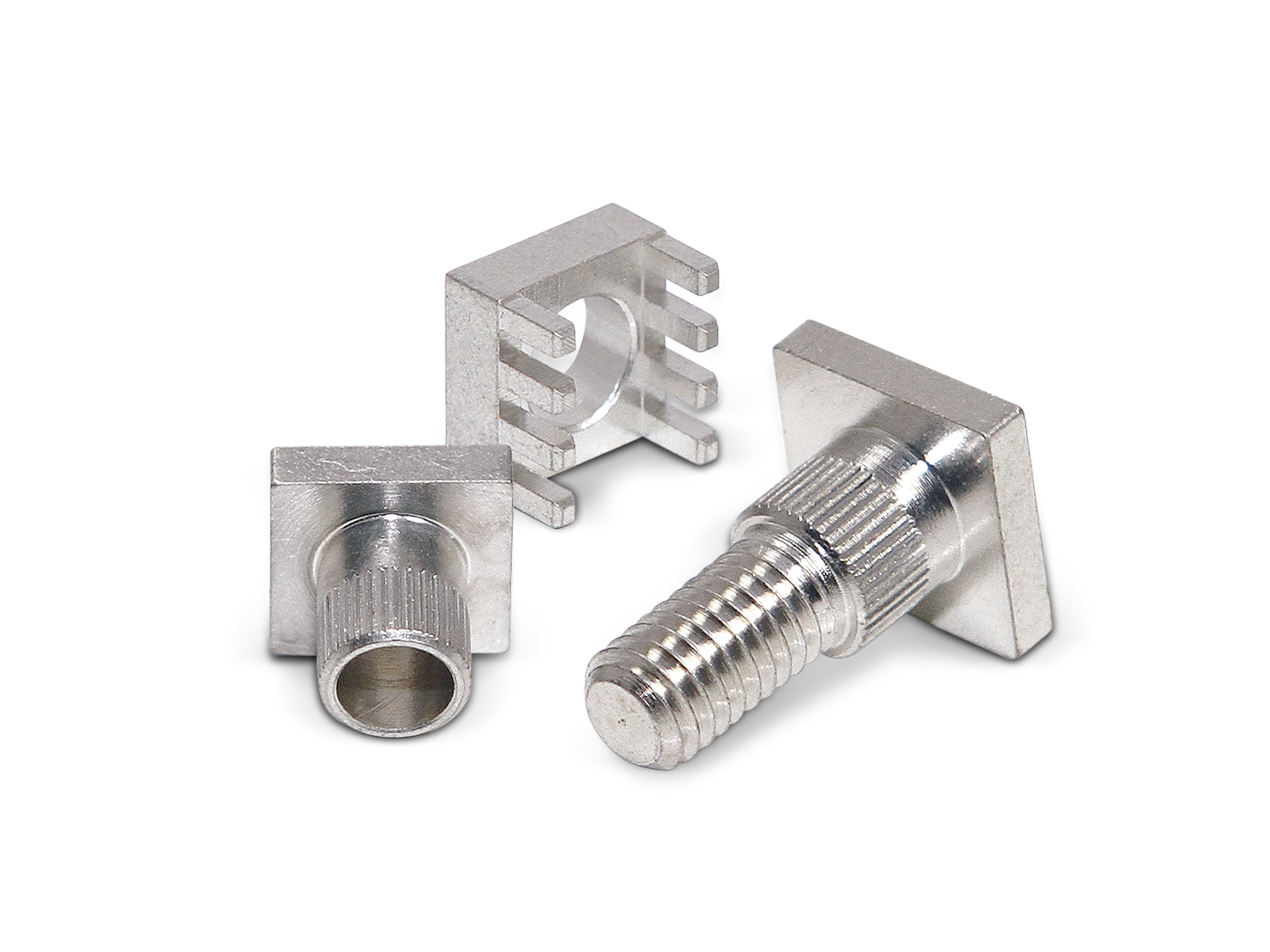

Product picture PowerTwo

Key information at a glance

Application possibilities

  • Contacting / fastening of switches, fuses, etc.
  • Wire-to-board for screwing ring cable lugs
  • Board-to-board
  • Electromechanics such as housing fastening and spacers

From sample to market

Samples are available even in small quantities. Individual Powerelements for series production are also no problem.
Just tell us what you need!

Packaging

Flexible packaging options: bulk, trays or in blister on reel for cost-effective assembly. In addition, you have the option to package the items in ESD blister tape, optionally with Kapton stickers or completely in your desired packaging.

Application possibilities

For contacting and fixing switches, fuses, IGBTs, etc.

Application possibilities

For contacting and fixing switches, fuses, IGBTs, etc.

The (LF) PowerTwo Powerelements are ideal for attaching components such as fuses, switches or IGBTs to the PCB. Learn more about these and other interconnect solutions now.

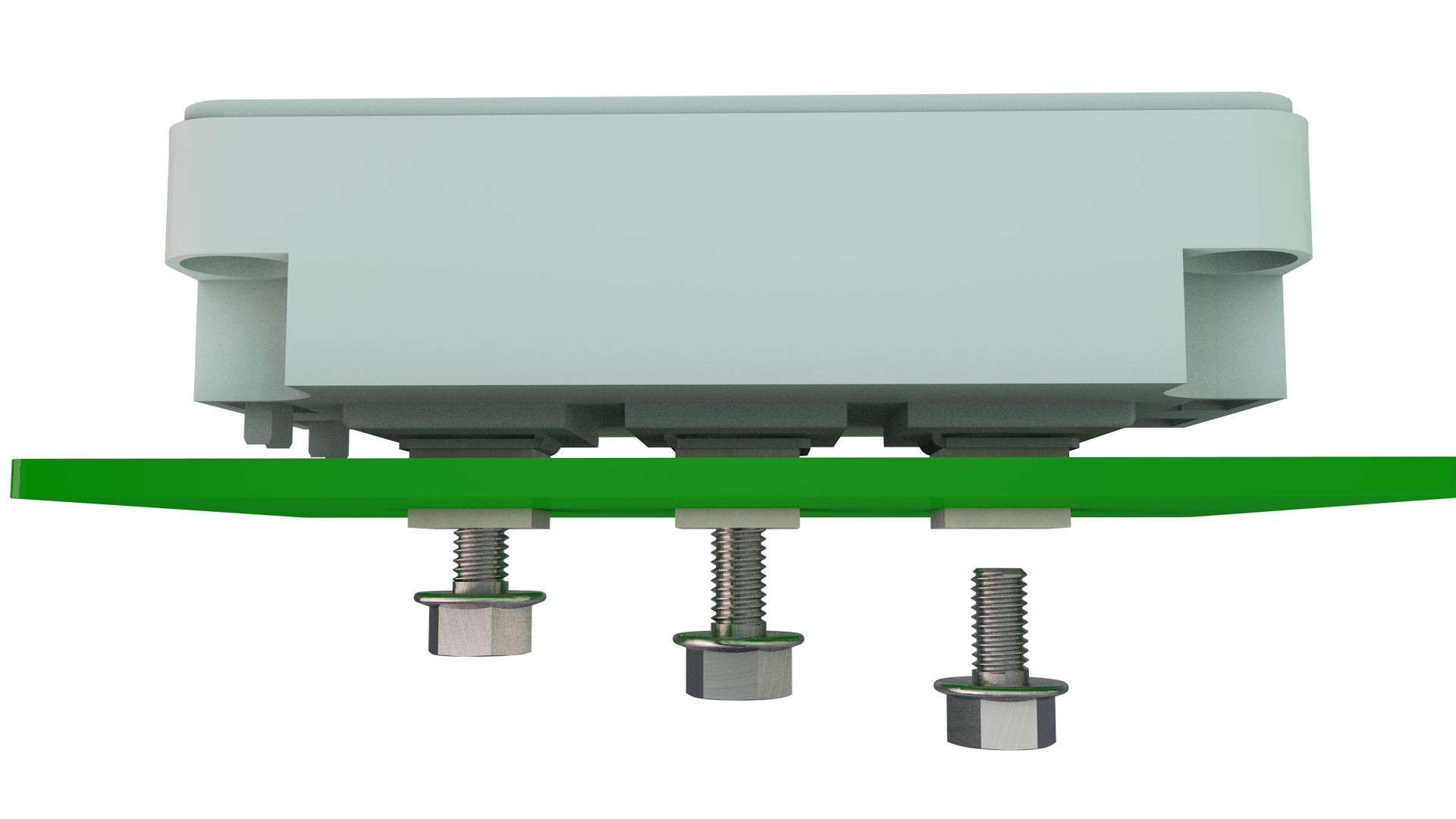

Contacting of an IGBT module with (LF) PowerTwo Powerelements

Processing options for (LF) PowerTwo Powerelements

MPFT (Massive Press Fit Technology)

Massive press-fit technology is the process of pressing solid pins into an electrically plated-through hole in a printed circuit board. Powerelements for press-fit technology have excellent mechanical and electrical properties, making them ideal for use in harsh environments such as high temperature fluctuations or vibration. The press-fit process creates a high performance, gas-tight cold welded connection with a contact resistance of just a few μOhm. This ensures very high current carrying capacity through low resistance contact points.

PCB design

Printed circuit boards must be designed in accordance with the latest edition of IPC A 600. In the case of solid press-fit technology, the PCBs must be designed in accordance with the Würth Elektronik ICS Press-fit Specification. Special attention should be paid to hole diameter and copper thickness.

Further information

Torques

Torque values for the various thread dimensions are listed on the Technology section. Different material combinations or thread lengths for bushings are not considered. Depending on the thread length, the bushings can be tightened to higher torques.

Current carrying capacity

The current carrying capacity must always be considered in the context of the overall system. Our measurements have shown that the limiting factor is usually the PCB layout or the connection of external leads (contact resistance press-in zone 100-200 μΩ).

Qualification

(LF) PowerTwo Press-fit high current contacts have successfully passed vibration test and mechanical shock test according to ISO 16750-3 standard. Vibration test according to ISO 16750-3:2012 4.1.2.7 Random test VII Mechanical shock test according to ISO 16750-3:2012 4.2.3 Severity 2.

Matching PowerTwo combinations

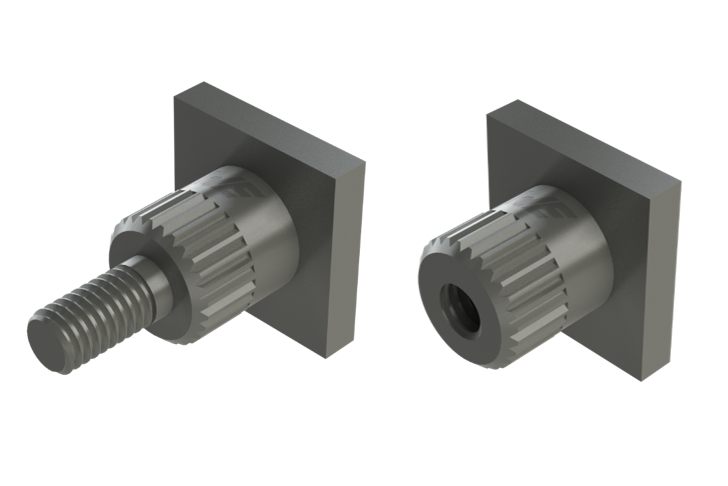

Standardized Powerelements of the type (LF) PowerTwo press-in element as bolt and bush

Exemplary illustration of a (LF) PowerTwo press-in element as bolt and bush

PowerTwo Base Element

PowerTwo Press-in Element

K90500

K96961; K96695; K90506

K94720

K96961; K96695; K90506

K96802-Q

K92265; K97070

K91071

K94371; K91411; K96963; K93845; K91082; K91074; K91126

K90550

K94371; K91411; K96963; K93845; K91082; K91074; K91126

K96580

K94371; K91411; K96963; K93845; K91082; K91074; K91126

K90211

K94371; K91411; K96963; K93845; K91082; K91074; K91126

K90571

K96968; K96448; K92100

K91070

K95652; K96576; K95652; K91122

K95646

K95652

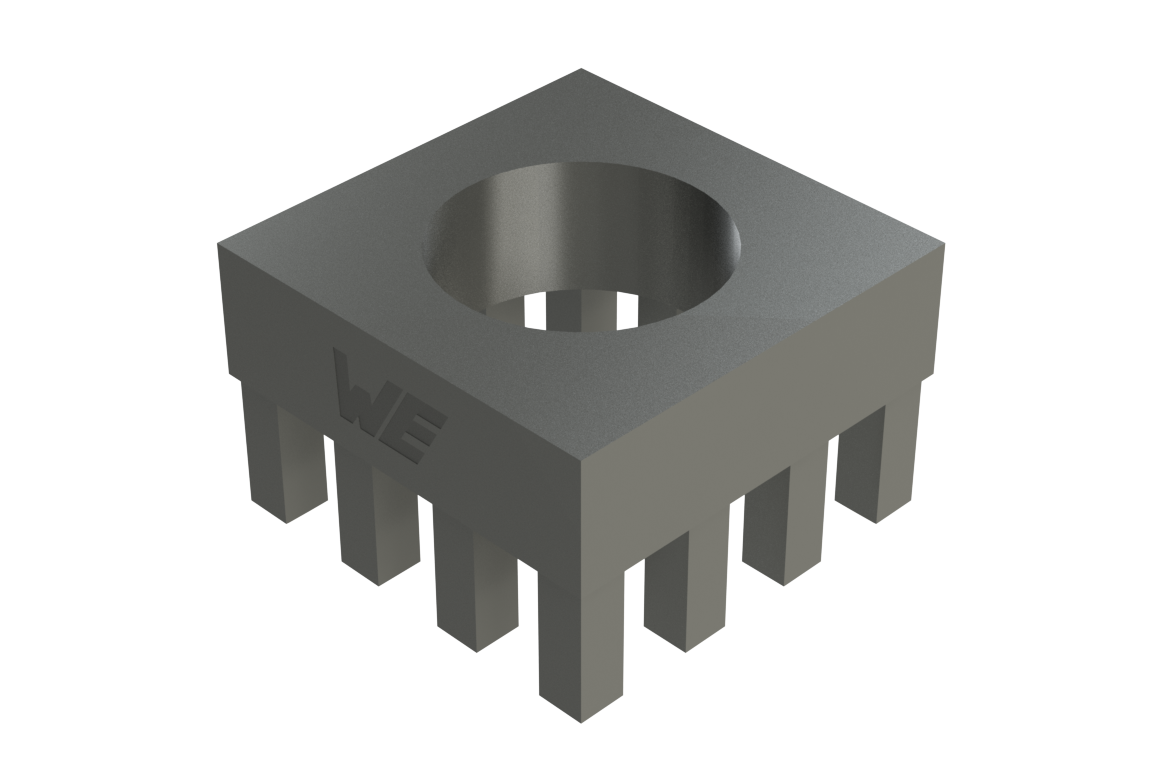

Standardized Powerelement LF PowerTwo bush base element 6.2 mm, part number LF990202

Exemplary illustration of a (LF) PowerTwo basic element

PowerTwo Press-in Element

PowerTwo Base Element

K90506

K90500; K94720

K91126

K91071; K90550; K96580; K90211

K91074

K91071; K90550; K96580; K90211

K91082

K91071; K90550; K96580; K90211

K91122

K91070

K91411

K91071; K90550; K96580; K90211

K92265

K96802-Q

K93845

K91071; K90550; K96580; K90211

K94371

K91071; K90550; K96580; K90211

K95652

K91070; K95646

K96448

K90571

K96576

K91070

K96695

K90500; K94720

K96961

K90500; K94720

K96963

K91071; K90550; K96580; K90211

K96968

K90571

K97070

K96802-Q

K92100

K90571
